installation problem v7

wdwm · September 20, 2011

Hi Nick, have followed the updated pdf and when I get to the setup page I get en error. (IIS6, Server 2003) In event view this is what it's saying:

Event Type: Error

Event Source: System.ServiceModel 4.0.0.0

Event Category: WebHost

Event ID: 3

Date: 20/09/2011

Time: 11:10:47

User: NT AUTHORITY\NETWORK SERVICE

Computer: WMS-SVR-001

Description:

WebHost failed to process a request.

Sender Information: System.ServiceModel.ServiceHostingEnvironment+HostingManager/46400467

Exception: System.ServiceModel.ServiceActivationException: The service '/HAP/api/setup' cannot be activated due to an exception during compilation. The exception message is: An endpoint reference cycle was detected in your configuration. The following reference cycle must be removed: webHttpEndpoint/, webHttpEndpoint/. (D:\RMNetwork\RMManage\Web Components\hap\web.config line 162). ---> System.Configuration.ConfigurationErrorsException: An endpoint reference cycle was detected in your configuration. The following reference cycle must be removed: webHttpEndpoint/, webHttpEndpoint/. (D:\RMNetwork\RMManage\Web Components\hap\web.config line 162)

at System.ServiceModel.Description.ConfigLoader.LookupEndpoint(ServiceEndpointElement serviceEndpointElement, ContextInformation context, ServiceHostBase host, ServiceDescription description, Boolean omitSettingEndpointAddress)

at System.ServiceModel.Web.WebServiceHost.AddAutomaticWebHttpBindingEndpoints(ServiceHost host, IDictionary`2 implementedContracts, String multipleContractsErrorMessage, String standardEndpointKind)

at System.ServiceModel.Web.WebServiceHost.OnOpening()

at System.ServiceModel.Channels.CommunicationObject.Open(TimeSpan timeout)

at System.ServiceModel.Channels.CommunicationObject.Open()

at System.ServiceModel.ServiceHostingEnvironment.HostingManager.ActivateService(String normalizedVirtualPath)

at System.ServiceModel.ServiceHostingEnvironment.HostingManager.EnsureServiceAvailable(String normalizedVirtualPath)

--- End of inner exception stack trace ---

at System.ServiceModel.ServiceHostingEnvironment.HostingManager.EnsureServiceAvailable(String normalizedVirtualPath)

at System.ServiceModel.ServiceHostingEnvironment.EnsureServiceAvailableFast(String relativeVirtualPath)

Process Name: w3wp

Process ID: 1300

Any pointers please? From anyone!

Simcfc73 · September 20, 2011

Same here

nickbro · September 20, 2011

Open ~/Web.config

Right down the bottom, try deleting

<standardEndpoints> <webHttpEndpoint> <standardEndpoint name="" helpEnabled="true" faultExceptionEnabled="true" automaticFormatSelectionEnabled="true"/> webHttpEndpoint> standardEndpoints>

1.1k · September 20, 2011

same error as i had first ?

i reinstalled in the HAP directory

Also gave iis_wpg write permissions on the app_data folder

nickbro · September 20, 2011

You shouldn't need to give that permission to that folder, as the system should be running either and network service (IIS6) or as the IIS Application Pool (IIS7). Check that you have editted the apppool and told it to use the application pool identity, not IUSR

Simcfc73 · September 20, 2011

When I try and test connection in the Application pool I am getting 'invalid application path'.. must be missing something.. I have the older version still running though.

wdwm · September 20, 2011

Open ~/Web.config
Right down the bottom, try deleting

<standardEndpoints> <webHttpEndpoint> <standardEndpoint name="" helpEnabled="true" faultExceptionEnabled="true" automaticFormatSelectionEnabled="true"/> webHttpEndpoint> standardEndpoints>

This has done the trick, thankyou Nick.

1.1k · September 20, 2011

You shouldn't need to give that permission to that folder, as the system should be running either and network service (IIS6) or as the IIS Application Pool (IIS7). Check that you have editted the apppool and told it to use the application pool identity, not IUSR

Im using II6

it says on your install instructions . set the hap folders IIS_wpg to Read and execute

Under this it says

App_data folder : set to read and write .

I assumed this meant set the user iis_wpg under the app_data folder to have write permissions

jamesfed · September 20, 2011

Hi Nick,

Sorry same message as all others - I've done a clean install (at least I belive I have ) but get the attached screen shot message every time.

Event viewer (Server 2008 R2/IIS 7)

Comes up with the following-

WebHost failed to process a request.
Sender Information: System.ServiceModel.ServiceHostingEnvironment+HostingManager/63835064
Exception: System.ServiceModel.ServiceActivationException: The service '/v7/api/setup' cannot be activated due to an exception during compilation.  The exception message is: This collection already contains an address with scheme http.  There can be at most one address per scheme in this collection. If your service is being hosted in IIS you can fix the problem by setting 'system.serviceModel/serviceHostingEnvironment/multipleSiteBindingsEnabled' to true or specifying 'system.serviceModel/serviceHostingEnvironment/baseAddressPrefixFilters'.
Parameter name: item. ---> System.ArgumentException: This collection already contains an address with scheme http.  There can be at most one address per scheme in this collection. If your service is being hosted in IIS you can fix the problem by setting 'system.serviceModel/serviceHostingEnvironment/multipleSiteBindingsEnabled' to true or specifying 'system.serviceModel/serviceHostingEnvironment/baseAddressPrefixFilters'.
Parameter name: item
  at System.ServiceModel.UriSchemeKeyedCollection.InsertItem(Int32 index, Uri item)
  at System.Collections.Generic.SynchronizedCollection`1.Add(T item)
  at System.ServiceModel.UriSchemeKeyedCollection..ctor(Uri[] addresses)
  at System.ServiceModel.ServiceHost..ctor(Type serviceType, Uri[] baseAddresses)
  at System.ServiceModel.Activation.WebServiceHostFactory.CreateServiceHost(Type serviceType, Uri[] baseAddresses)
  at System.ServiceModel.Activation.ServiceHostFactory.CreateServiceHost(String constructorString, Uri[] baseAddresses)
  at System.ServiceModel.ServiceHostingEnvironment.HostingManager.CreateService(String normalizedVirtualPath)
  at System.ServiceModel.ServiceHostingEnvironment.HostingManager.ActivateService(String normalizedVirtualPath)
  at System.ServiceModel.ServiceHostingEnvironment.HostingManager.EnsureServiceAvailable(String normalizedVirtualPath)
  --- End of inner exception stack trace ---
  at System.ServiceModel.ServiceHostingEnvironment.HostingManager.EnsureServiceAvailable(String normalizedVirtualPath)
  at System.ServiceModel.ServiceHostingEnvironment.EnsureServiceAvailableFast(String relativeVirtualPath)
Process Name: w3wp
Process ID: 5080

I could well be wrong in my understanding but in that error message it mentions /v7/api - where v7 is my HAP folder however I dont have a api folder anywhere to be seen (although I think I can see one in your demo setup videos).

Either way v6 is running great and thanks for a wonderful bit of software!

nickbro · September 20, 2011

Can you navigate to /v7/api/setup in the browser and tell me if it loads up

1.1k · September 20, 2011

Just another bug btw for your next revision .

When you use the anouncement . After you save , the anouncement covers the logoff button .

jamesfed · September 20, 2011

Can you navigate to /v7/api/setup in the browser and tell me if it loads up

It loads with attached message on screen

nickbro · September 20, 2011

It loads with attached message on screen

I have no idea on that error, have you tried googling/bingging it?

nickbro · September 20, 2011

Just another bug btw for your next revision .

When you use the anouncement . After you save , the anouncement covers the logoff button .

Thanks will look into it

jamesfed · September 20, 2011

I have no idea on that error, have you tried googling/bingging it?

Nothing helpful on first look but something just started a thought process - looked like there was a HTTP binding to the site which was throwing up all the errors.

All working now though.

Thanks again Nick!

nickbro · September 20, 2011

Nothing helpful on first look but something just started a thought process - looked like there was a HTTP binding to the site which was throwing up all the errors.

All working now though.

Thanks again Nick!

Good to hear.

Thankfully, you wont have to go through the full setup next time

Simmer · September 20, 2011

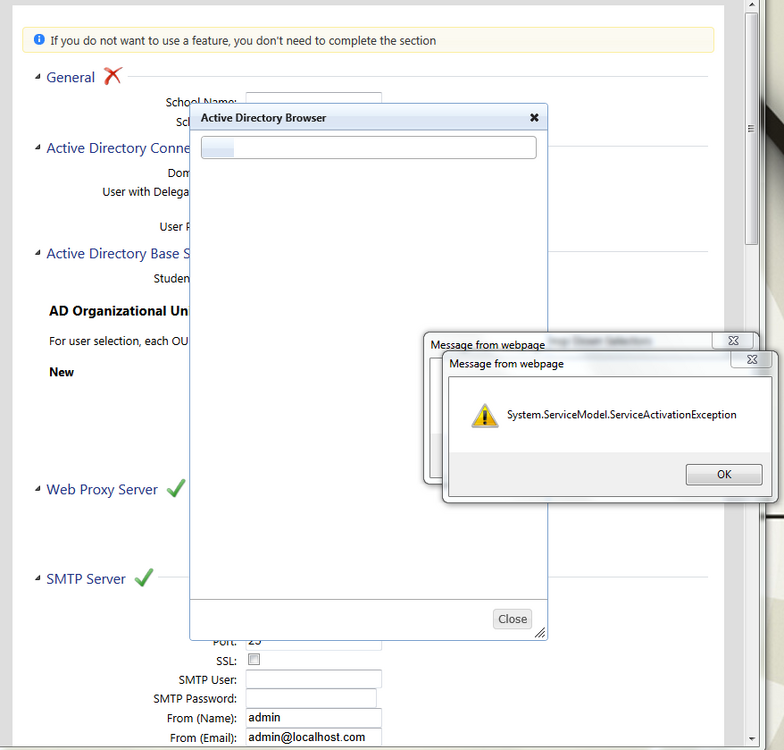

Redone the install 3 times now and i can get the setup page to appear but when i click on the test button i get a popup saying "System.ServiceModel.ServiceActivationException"

TronXP · September 20, 2011

As jamesfed said above, you need to goto your site bindings (IIS Manager > Sites > "Site Name" > In the actions pane look for "bindings") ensure there is only one binding for http. I also had this problem.

nickbro · September 20, 2011

Ask James how he fixed it. It's prob a binding issue in IIS

Nothing helpful on first look but something just started a thought process - looked like there was a HTTP binding to the site which was throwing up all the errors.

jamesfed · September 20, 2011

Ask James how he fixed it. It's prob a binding issue in IIS

Yep I just had HTTP enabled on the IIS site I had setup for HAP - just click on site (left hand side of the IIS window) then on the right click bindings and remove any mention of HTTP and only leave HTTPS.

KayDubYa · September 20, 2011

I am seeing the same issue I had with 6.5. When uploading with the extended version, I end up getting a corrupt file error when opening the docs. In the basic version, this does not happen. Can anyone offer any help with this please?

Simmer · September 20, 2011

Im trying to find the bindings in IIS6 and failing, where can i find the option to change them

nickbro · September 20, 2011

The MSCB (My School Computer Browser) Extended Edition will be replaced with a HTML5 site in version 8 (not that far away).

KayDubYa · September 20, 2011

The MSCB (My School Computer Browser) Extended Edition will be replaced with a HTML5 site in version 8 (not that far away).

Thanks Nick.

Simmer · September 21, 2011

Do you have IIS7 or 6
