Elite Vision DL OHP Bulbs

[CommodoreS]

I know its not really IT, but I have got an old Elite Vision DL OHP and both the bulbs have blown and would like to replace them.

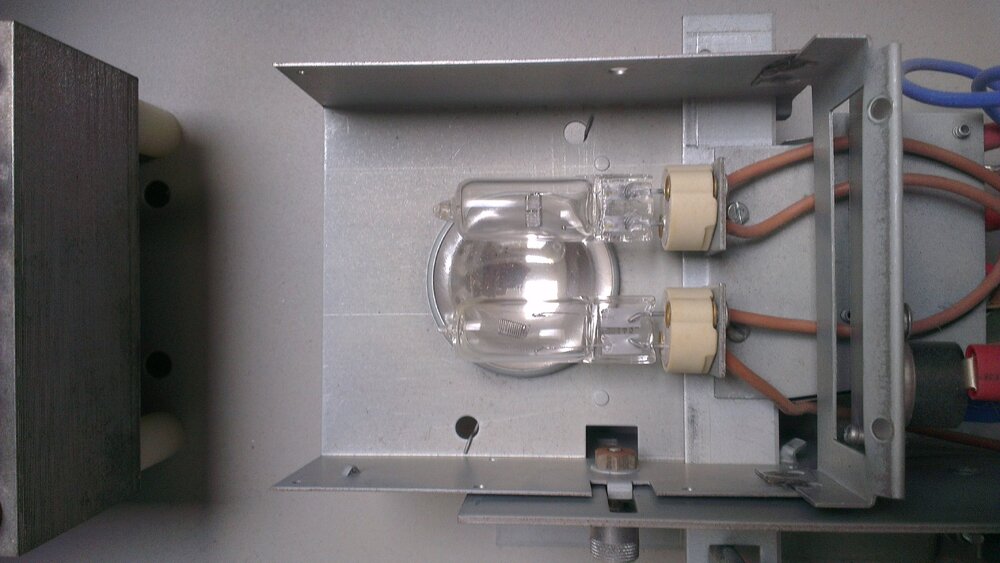

I have attached a picture. Does anyone know what type of bulbs this uses and where to buy them? Also how easy they are to swap as they look like they might be hard wired/soldered.



Any help is appreciated.



[gob]

Hi CommodoreS,



Did you ever find these bulbs? I'm in the exact same position!



G

[CommodoreS]

No. Still looking.

[gob]

I suspect it's the 3rd in from the left here:

https://www.espocatalogue.org/WebConnectEPO/MainServlet?storeId=webconnect&catalogId=webconnect&langId=en_GB&action=ProductDisplay&screenlabel=index&productId=12296



was looking at the catalogue on that site and they had elite vision dl bulb listed as that

Edited June 19, 2013 by gob

[gob]

I can't guarantee it but I'm pretty confident I've located the bulb on eBay



PHILIPS PROJECTION LAMP BULB - Type 7748XHP 24V 250W | eBay



I have one of the broken bulbs with me right now and it says in small white text accross the bulb "24V, 250W, 7748XH" and on the other side it says "PH" which could be philips?

[AlClark]

I've seen similar bulbs in the past - they normally have their model or type printed across the bottom of the bulb near the prongs

[gob]

Just to follow up - purchased the bulb that I linked above and it worked.
