HP Procurve VALNS Help !

[ICTNUT]

Hi Guys,



I am in the process of testing VLAn setups and need some guideance.



The first thing is HP terminology (gah!) hate it....



Secondly here is what I have a HP 2824 L3 Switch (Core) and a Netgear GSM 7248 L2 (Edge). Setup is as follows:



Uplinks from 7248 to 2824 out on Port 48 and in on Port 24 respectively



on the 7248 I have 4 PC's on port 1, 3, 5, 7 with 1 and 3 untagged on VLAN2, 5 untagged on VLAN 1, and 7 untagged on VLAN3



On the 2824 I have DC's, DHCP, File Server and Proxy all untagged on VLAN1



The problem:



All the PC's can logon with out issue

1 - non of them can ping each other ( I would expect this for inter VLAN but thos on the same VLAN should be able to shouldn't they??)

2 - Shares are not mapping on any aprt from the PC in VLAN1 (Port 5)

3 - Non can access the internet apart from PC in VLAN 1 (Port 5)



What am I missing, I am not used to HP stuff as I normally workwith Cisco but hey we have what we have



Do I need to "tag" the uplinks in any way?

My understanding is that each port need only be "untagged" if it is a member of only one VLAN which in most cases is the case?

I would expect pinging to be restricted when trying to ping a pc in vlan 2 from vlan3.



Any help would be great as I am STUCK.......

Edited July 23, 2008 by ICTNUT
typo

[spc-rocket]

Hi Guys,



I am in the process of testing VLAn setups and need some guideance.



The first thing is HP terminology (gah!) hate it....



Secondly here is what I have a HP 2824 L3 Switch (Core) and a Netgear GSM 7248 L2 (Edge). Setup is as follows:



Uplinks from 7248 to 2824 out on Port 48 and in on Port 24 respectively



on the 7248 I have 4 PC's on port 1, 3, 5, 7 with 1 and 3 untagged on VLAN2, 5 untagged on VLAN 1, and 7 untagged on VLAN3



On the 2824 I have DC's, DHCP, File Server and Proxy all untagged on VLAN1



The problem:



All the PC's can logon with out issue

1 - non of them can ping each other ( I would expect this for inter VLAN but thos on the same VLAN should be able to shouldn't they??)

2 - Shares are not mapping on any aprt from the PC in VLAN1 (Port 5)

3 - Non can access the internet apart from PC in VLAN 1 (Port 5)



What am I missing, I am not used to HP stuff as I normally workwith Cisco but hey we have what we have



Do I need to "tag" the uplinks in any way?

My understanding is that each port need only be "untagged" if it is a member of only one VLAN which in most cases is the case?

I would expect pinging to be restricted when trying to ping a pc in vlan 2 from vlan3.



Any help would be great as I am STUCK.......



Hi there,



First you need to have the dhcp scopes defined on your dhcp server for each vlan so they pick up the ip addresses from the correct scope/subnet.



Then you need to have a default route on your core switch which will point to the proxy server or your router to outside world. This will take care of the internet access.



You need to enable ip routing in order for it to route packets and also need to have the equivilant of ip-helper command on the core so clients in other vlans can obtain ip address from one dhcp server and also from the correct scope!.



Your uplinks should be "tagged" (i hate HP's terminology as well) because uplinks carry traffic from multiple vlans so the destination switch will look at it and make decision as to which vlan to send the traffic.



The shares part may be the block of netbios traffic so you need to enable this on the core i think.



Sorry i'm not much helpful, my expertise is with Cisco stuff.



Ash.

[ICTNUT]

Ashok: IPs/Subnets have been worked out and i'll put these in place on the DHCP tomorrow



DHCP-Helper Ihave worked out where this is on the procurve so no problems there.



As far as the uplinks are concerned Would I need to ""tag" all vlans?? or just the core, and yes under Cisco "Just Trunk" !!!





Hi there,



First you need to have the dhcp scopes defined on your dhcp server for each vlan so they pick up the ip addresses from the correct scope/subnet.



Then you need to have a default route on your core switch which will point to the proxy server or your router to outside world. This will take care of the internet access.



You need to enable ip routing in order for it to route packets and also need to have the equivilant of ip-helper command on the core so clients in other vlans can obtain ip address from one dhcp server and also from the correct scope!.



Your uplinks should be "tagged" (i hate HP's terminology as well) because uplinks carry traffic from multiple vlans so the destination switch will look at it and make decision as to which vlan to send the traffic.



The shares part may be the block of netbios traffic so you need to enable this on the core i think.



Sorry i'm not much helpful, my expertise is with Cisco stuff.



Ash.

[Sylv3r]

When we were looking at setting up VLANs on our HP kit the support forums over at HP had some really knowledgeable members who helped us loads. If you haven't checked the forum out its worth a quick skim through.

[andyrite]

Are all the VLANS setup on the core? Can you post the config from the hp core?

[sjatkn]

Do I need to "tag" the uplinks in any way?

My understanding is that each port need only be "untagged" if it is a member of only one VLAN which in most cases is the case?



I am no expert on HP kit yet, though the school I work for has got HP Procurve kit in place and are using VLANs. From the config I can see on one of my switches.



• Uplinks: DEFAULT_VLAN - untagged, all other VLANS are tagged.

• All other ports: Appropriate VLAN set to untagged and all others as 'no'.


[spc-rocket]

Ashok: IPs/Subnets have been worked out and i'll put these in place on the DHCP tomorrow



DHCP-Helper Ihave worked out where this is on the procurve so no problems there.



As far as the uplinks are concerned Would I need to ""tag" all vlans?? or just the core, and yes under Cisco "Just Trunk" !!!



Hi Ozan,



Yes you need to tag all the vlans except the vlan which pro curve uses to function itself (the native vlan in cisco terminology). Also make sure that the vlans created on other switches are also present on the core switch as well even if there are no ports allocated to those vlans.



The thing that confuses me is that when you allocate a port to the vlan the same flipping terminology is used "tagged" they should have called this something else because on uplinks the packets do need to be tagged so the recieving switch knows which vlan the packet is for. The recieving switch then strips the vlan info (the tag) and then forwards the frames/packets to the appropriate port on that vlan. I take it the tagging and untagging is the HP equivilent of encapsulation is it?



Ash.

[ICTNUT]

I take it the tagging and untagging is the HP equivilent of encapsulation is it?



I think this is the case...!



OK here is the situation so far.



I have all six VLANs setup on both the switches and I know these work as the servers sit in VLAN 1 and any PC placed into any other VLAN fail to work.



I am not getting DHCP from the server in VLAN 1 for a PC in VLAN 3



I have setup the dhcp helper on the HP switch as follows:



RM77 Core SW1(vlan-1)# ip helper-address 192.168.0.3



and



RM77 Core SW1(vlan-3)# ip helper-address 192.168.0.3



My question is should the ip helper address be different for VLAN 3 as the ip address given is in VLAN1??

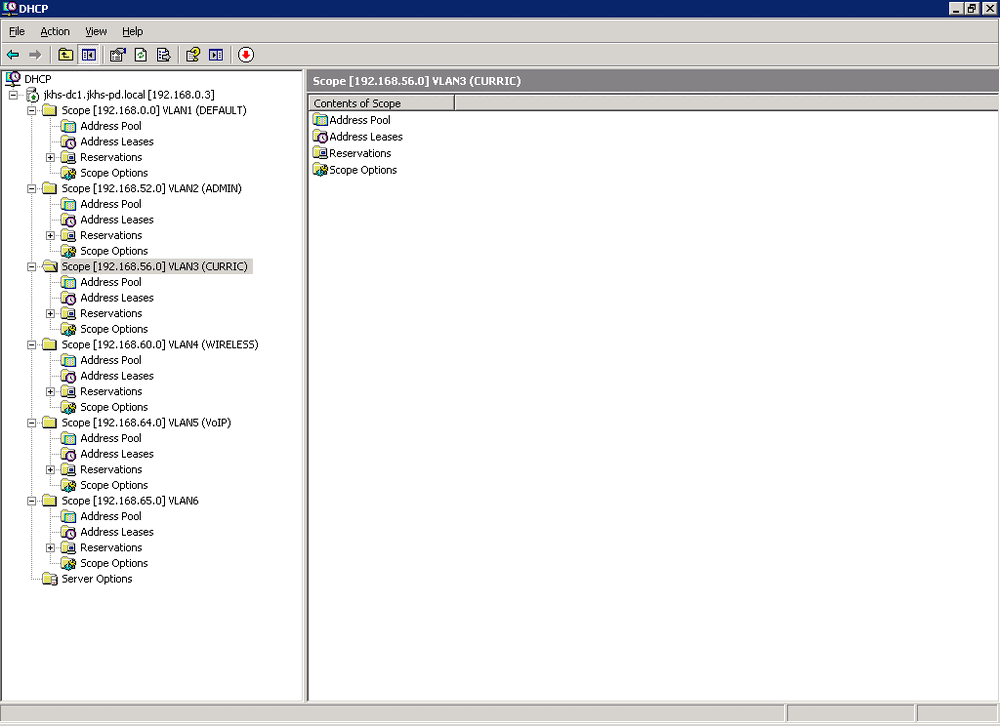

Scopes on DHCP server have been setup, see attached image

Edited July 24, 2008 by ICTNUT

[andyrite]

The ip address needs to be the actual address of the dhcp server. Post or send me your sh run off your hp core switch and i'll have a look.

[ICTNUT]

as requested:



RM77 Core SW1# sh run



Running configuration:



; J4903A Configuration Editor; Created on release #I.08.98



hostname "RM77 Core SW1"

snmp-server contact "ICT Support Ext 159"

snmp-server location "RM77"

interface 22

name "UPLINK_RM76"

exit

interface 23

name "UPLINK_RSW1"

exit

interface 24

name "UPLINK_RSW2"

exit

ip default-gateway 192.168.0.2

timesync sntp

sntp broadcast

snmp-server community "public" Unrestricted

vlan 1

name "DEFAULT"

untagged 1-21

ip address 192.168.0.202 255.255.252.0

ip helper-address 192.168.0.3

tagged 22-24

ip igmp

exit

vlan 2

name "ADMIN"

ip address 192.168.52.1 255.255.252.0

ip helper-address 192.168.0.3

tagged 1-24

ip igmp

exit

vlan 3

name "CURRIC"

ip address 192.168.56.1 255.255.252.0

ip helper-address 192.168.0.3

tagged 1-24

ip igmp

exit

vlan 4

name "WIRELESS"

ip address 192.168.60.1 255.255.252.0

ip helper-address 192.168.0.3

ip igmp

exit

vlan 5

name "VoIP"

no ip address

ip helper-address 192.168.0.3

ip igmp

exit

vlan 6

name "MEDIA"

no ip address

ip helper-address 192.168.0.3

ip igmp

exit

fault-finder bad-driver sensitivity high

fault-finder bad-transceiver sensitivity high

fault-finder bad-cable sensitivity high

fault-finder too-long-cable sensitivity high

fault-finder over-bandwidth sensitivity high

fault-finder broadcast-storm sensitivity high

fault-finder loss-of-link sensitivity high

fault-finder duplex-mismatch-HDx sensitivity high

fault-finder duplex-mismatch-FDx sensitivity high

spanning-tree

[andyrite]

Have you enabled ip routing? It's not in you sh run.

[andyrite]

Might be worth adding ip route 0.0.0.0 0.0.0.0 192.168.0.2 to deal with any packets it doesn't know what to do with.

[spc-rocket]

I think this is the case...!



OK here is the situation so far.



I have all six VLANs setup on both the switches and I know these work as the servers sit in VLAN 1 and any PC placed into any other VLAN fail to work.



I am not getting DHCP from the server in VLAN 1 for a PC in VLAN 3



I have setup the dhcp helper on the HP switch as follows:



RM77 Core SW1(vlan-1)# ip helper-address 192.168.0.3



and



RM77 Core SW1(vlan-3)# ip helper-address 192.168.0.3



My question is should the ip helper address be different for VLAN 3 as the ip address given is in VLAN1??



Scopes on DHCP server have been setup, see attached image



Hi Ozan,



The ip-helper command will take the ip address of your dhcp server so it should be same for all your vlan.



Make sure that the DG of your server inc. dhcp is set to the IP of the vlan on which your servers are. The you need to have default route on your core to your main router to outside world. So in your case from looking at the config, you need set all your server's DG to 192.168.0.202 with mask of 255.255.252.0 as this is the IP you given you default vlan on which your servers are placed in.



Ash.

[ICTNUT]

Have you enabled ip routing? It's not in you sh run.



Yes I have:



Running configuration:



; J4903A Configuration Editor; Created on release #I.08.98



hostname "RM77 Core SW1"

snmp-server contact "ICT Support Ext 159"

snmp-server location "RM77"

interface 22

name "UPLINK_RM76"

exit

interface 23

name "UPLINK_RSW1"

exit

interface 24

name "UPLINK_RSW2"

exit

ip default-gateway 192.168.0.2

ip routing

timesync sntp

sntp broadcast

snmp-server community "public" Unrestricted

[andyrite]

Assign a port on your hp switch to vlan3. See if you can get an ip address there. It will prove the config on HP switch is correct.

[ICTNUT]

Might be worth adding ip route 0.0.0.0 0.0.0.0 192.168.0.2 to deal with any packets it doesn't know what to do with.



I have got that in place



I have just done a reboot of the HP Switch and did a release and renew on the pc in vlan 3 and hey presto an ip address from the correct range.



But no internet



Let me check my proxy filter..... runs off

[DMcCoy]

does your proxy have the relevant static routes to return the traffic as it won't have a default gateway for the lan side probably

[spc-rocket]

does your proxy have the relevant static routes to return the traffic as it won't have a default gateway for the lan side probably



I agree, you will probably need to have static routes defined in your firewall for all vlans.



If you proxy is isa server then let me know and i'll send you some instructions.



Ash.

[ICTNUT]

Many thanks for the pointers guys, here is where we are at, POsting at home at the moment as there is not internet at school.



Proxy is a Bloxx box that handles all the filtering

Firewall is a Sonicwall appliance.



All DHCP Request are now being sent to the correct vlans with the correct IP schemes with VLAN seperation working a treat i.e CURRICULUM VLAN cannot access nor see the ADMIN (SIMS) VLAN.



I think the internet side of things could be to do with routing but there are 2 other core switches in the way which still need to be configured properly so I will do this tomorrow after Ihave setup a dialup connection to the web



Will let you all know how I get on and thanks again for the pointers

[andyrite]

Nice one. You just need some static routes to route back to your subnets.

[SYNACK]

You may need to configure all of the address spaces used by your vlans as part of the internal network in the firewall and will need to add static routes for each of these networks into the firewall machine itself.



This will allow the firewall to return packets from the internet via your internal router and still forward packets for any subnets that are not directly connected to it by sending these out to the internet.

Edited July 24, 2008 by SYNACK
Rewrote after reading first posts

[ICTNUT]

OK here we go.



Thanks to all those that helped with the VLANs, easy once you get the HP terminology worked out.



Any how I have now got the issue of no internet feed to each of the subnets with my setup being as follows:



VLANs -> Proxy -> Firewall <- I get nothing of the internet in this setup



VLANs -> Firewall <- I get nothing of this setup unless I change the Gateway on one DC to the IP of the Firewall and hey presto Internet (this is how I am posting at the moment.)



Any ideas on how to get this sorted ideally as VLANs -> proxy -> Firewall



Proxy is a bloxx TVT-500 box and firewall is a sonicwall pro 3060 firewall

[ICTNUT]

All done, all sorted and all motoring



Need to setup the firewall with sub interfaces for each VLAN and I forgot to add a static route on the second HP L3 switch which just so happens to be the one the firewall is linked to.



Did the above and bingo
