GTX Posted February 12, 2013 Posted February 12, 2013 Hi Guys. This is my first post on the forum so i hope you can help me get this problem sorted. We ordered 10 x HP DC770 refurbished from a company we have used before. They state on the NIC that it can run at 1gbps (also on the website). I replaced a laptop with one of the new systems but it will only run at 100mbps. I first thought it could of been a port problem so i left it and moved onto the next one. 5 PC's later they are all running at 100mbps. The laptops that they replaced all ran at 1gpbs. Iv even gone to our switches and plugged the PC's directly into them and still only getting 100mbps with cat 5e and cat 6. It will only stay on 1gbps for around 6 seconds then has a fit and changes back to 100mbps. i'm 100% sure the switches are 1gbps Drivers upto date.. What else can be the problem?
Steve21 Posted February 12, 2013 Posted February 12, 2013 If you go into control panel, network adapters blahblah, and go into the configuration settings for the adapter, does it have it set under speed/duplex? Sometimes if it's set to auto etc it'll only connect at other speeds on bootup. Might be worth seeing what it's set to currently. Steve
FN-GM Posted February 12, 2013 Posted February 12, 2013 Try a different set of drivers. What type of switches do you have?
GTX Posted February 12, 2013 Author Posted February 12, 2013 Thanks Steve, Ill take a look now. FN-GM they are Netgear JGS524 and Zyxel GS1510-24
DMcCoy Posted February 12, 2013 Posted February 12, 2013 All 3 options (Mini tower, SFF, USFF) all list 1Gb intel NIC as being onboard
FN-GM Posted February 12, 2013 Posted February 12, 2013 A quick google shows the Netgear as gigabit. Try different versions of the driver.
GTX Posted February 12, 2013 Author Posted February 12, 2013 Hi Steve, It was on auto detect but when i select auto-negotiate it just has a fit and doesn't connect.
Steve21 Posted February 12, 2013 Posted February 12, 2013 Hi Steve, It was on auto detect but when i select auto-negotiate it just has a fit and doesn't connect. There should be options to choose an actual speed there. etc Or don't you get that? Steve

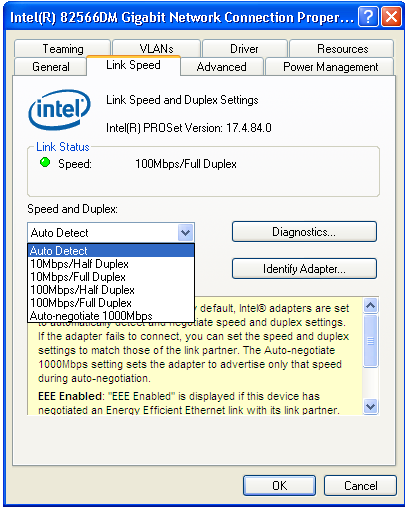

GTX Posted February 12, 2013 Author Posted February 12, 2013 networkspeed.bmp This is what i get Steve.
DMcCoy Posted February 12, 2013 Posted February 12, 2013 82566DM 100MB Auto-Negotiation with 16.4 and 16.5
Michael Posted February 12, 2013 Posted February 12, 2013 It's definitely a gigabit adapter. Try selecting Auto-negotiate 1000Mbps. I presume also that your switches are configured to auto 1000 and not force 1000. It does make a difference.
GTX Posted February 12, 2013 Author Posted February 12, 2013 82566DM 100MB Auto-Negotiation with 16.4 and 16.5 Sadly that didnt work I did do a test on the line from the NIC and it said the cable is good, This is really getting on my boobs now -.-
teejay Posted February 12, 2013 Posted February 12, 2013 Is that driver from the Intel website, if so I would try the version from the HP website.
GTX Posted February 12, 2013 Author Posted February 12, 2013 Is that driver from the Intel website, if so I would try the version from the HP website. Done that, Still nothing :S. I have a feeling that i'm messing something really obveus here
DMcCoy Posted February 12, 2013 Posted February 12, 2013 Sadly that didnt work I did do a test on the line from the NIC and it said the cable is good, This is really getting on my boobs now -.- Did you try driver 16.3 or earlier as suggested in the thread? 16.4 onwards has been broken
GTX Posted February 12, 2013 Author Posted February 12, 2013 Yep, Tried 3 different ones. Going to try again tomorrow and see if i get anywhere. If anyone has anymore ideas. Feel free to post.
psydii Posted February 12, 2013 Posted February 12, 2013 There was a firmware update for the DC7700 that fixed a problem with their NICs.. HP Compaq dc7700 Convertible Minitower PC- Intel PRO/1000 Firmware - HP Business Support Center
Geoff Posted February 12, 2013 Posted February 12, 2013 The refurbished DC7700's SFF's I have here have Intel 82566DM nics. I just use the latest v18 drivers and it's totally fine (netgear/hp procurve/dlink switches depending on site). http://downloadcenter.intel.com/SearchResult.aspx?lang=eng&ProductFamily=Ethernet+Components&ProductLine=Ethernet+Controllers&ProductProduct=Intel%C2%AE+82566+Gigabit+Ethernet+PHY
Chris_ Posted February 12, 2013 Posted February 12, 2013 Have you tried Windows 7 on one of them? Does it connect at 1gpbs without any problems?
GTX Posted February 13, 2013 Author Posted February 13, 2013 Hi Chris, Do you think installing w7 will help me trouble shoot it better?
GTX Posted March 5, 2013 Author Posted March 5, 2013 Well, A little update for you all. Windows 7 works fine on gigabit. Any ideas why this would happen? I know for 100% it isnt our network so it must be XP its self. Let the games begin. Any advise would be greatly appreciated.
