UniFi, VLANs, Switches to all go together

[MrWu]

Hi;



I was wondering if I could get a sanity check for my design for a UniFi, Netgear with VLAN ACLs and Lightspeed content filtering setup.

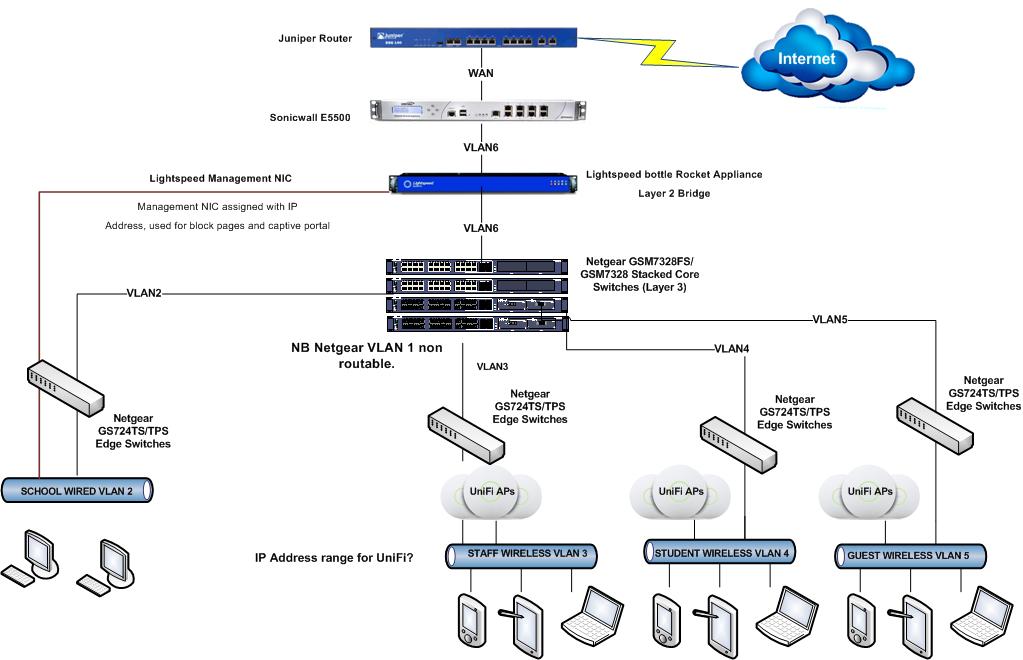

Pulling numerous threads of mine together, and with a lot of good help, I'm getting there. If you have a look at the diagram



Overall design:





VLANS IP Range and ACLs





Does this look ok?



The IP range was chosen for the amount of students we have (1100) and staff (200) to give a bit of headroom for the future



One thing I'm puzzled with is do I assign the UniFi APs the IP addresses in the 10.18.96.xxx range, same as the defualt wired network?



and also how does this tie together if I have my DC + DHCP server (Windows 2008 r2 box ) to handle the different scopes, eg do I set scopes up in DHCP and add the helper address (IP address for the Win2008 r2 DC+DHCP server) somewhere in the Core switch settings?



So the goal is for the Netgear Core to do the routing and ACLs..and pass traffic onto the Lightspeed Unit then internet via the Sonicwall(this would replace the Content Filtering running on the Sonicwall I would hope.)



Many thanks as always.

[SYNACK]

First off I'd make smaller VLANs, even if you have Block1Student, Block2Student etc. so that you bring the broadcast domain down meaning less broadcasts, this is especially important on the wireless network, this also segments things like ARP poisoning. 2000 devices on a single broadcast domain over wireless will choke it with broadcasts.



I have not dealt with the UnFi stuff but from what I know it does its best to support most of the features of larger products. As such the idea would be have the APs setup to take traffic from multiple VLANS. Personally I'd look to have a managment VLAN specificly for managment interfaces, probably VLAN1 for all network managed stuff that only tech people can get to. I'd put the config portion of the wireless on this and assign the various WLAN SSIDs to the required VLANs, students, staff etc.

[SYNACK]

Oh, yes and you are right, you want to set up the various scopes on your DHCP server then use a DHCP helper address in the core VLAN config for each VLAN in order to point them at the address of your DHCP server.

[paulfinlay]

Generally a wireless network will be confgured in such as way that the APs/Controllers are trunked to all VLANs and client VLAN assignment is done by SSID or dynamically via RADIUS. I have little experience with UniFi but I believe they only support 4 VLANs and I don't know if they can do dynamic VLAN assignment. I'd be apprehensive about implementing what is essentially a enterprise network design on non-enterprise hardware.



In order for the UniFi APs to get management addresses you'll need to look into 802.1q tagging and setting a native VLAN for the APs.

[MrWu]

Thanks guys



I guess I can reduce the hosts to 1022 for student VLAN



Yes it is a limitation of 4 VLANS for UniFi, but a lot of larger schools are using them. So will have a look t how they set theirs up.

[nicholab]

I am sure it is 4 per AP not 4 per system.

[m25man]

I am sure it is 4 per AP not 4 per system.



Correct, there is no limit to the number of VLANs supported by Unifi only to the number of SSIDs per AP (4)



Technically there is no reason why the hardware wouldnt support any more than 4 VLans its just that the Ubiquiti Gurus have decided 4 is more than adequate for the cpu and ram available.

[MrWu]

Thanks;



So in a secondary school environment, 4 SSIDs would be adequate? (Staff,Student,Guest) other than being mindful of the IP range I assign not being too large per VLAN, too many SSIDs might confuse things.

[SYNACK]

Thanks;



So in a secondary school environment, 4 SSIDs would be adequate? (Staff,Student,Guest) other than being mindful of the IP range I assign not being too large per VLAN, too many SSIDs might confuse things.



Yes, you should be good, if you end up with many wireless clients across the site you may benifit from segmenting behing the scenes connecting the student SSID to a couple of smaller VLANs. That may cause other issues though. You'll have to see how well it works in your environment but the more hosts you have in a single broadcast domain the more traffic is used bouncing broadcasts back and fowards.

[nicholab]

Staff,Student,Guest gives you one spare I don't under stand having a separate staff SSID. I would have SSIDs as BYOD, Guest and Managed clients. I would only allow the 4 VLAN's on to that port of the switch (wireless management, Staff, Student and Guest).

[Dragon]

Splitting up BYOD gives you the opportunity to set limitations differently for staff and students. Eg the time range the SSID is being broadcast, bandwidth limiting etc.
