IBM ServeRaid manager problem

[sps001]

Hi all

I have a server using windows 2003 server, 4 hard disks for raid 5 running IBM serveRaid manager.

Recently, one hard disk fail and I replace it with different brand but same size new hard disk.

After install it into the server, I "Synchronize" the new hard disk in the IBM serveRaid manager.

But it does not rebuild the data, and shows "Ready" but not "Online".

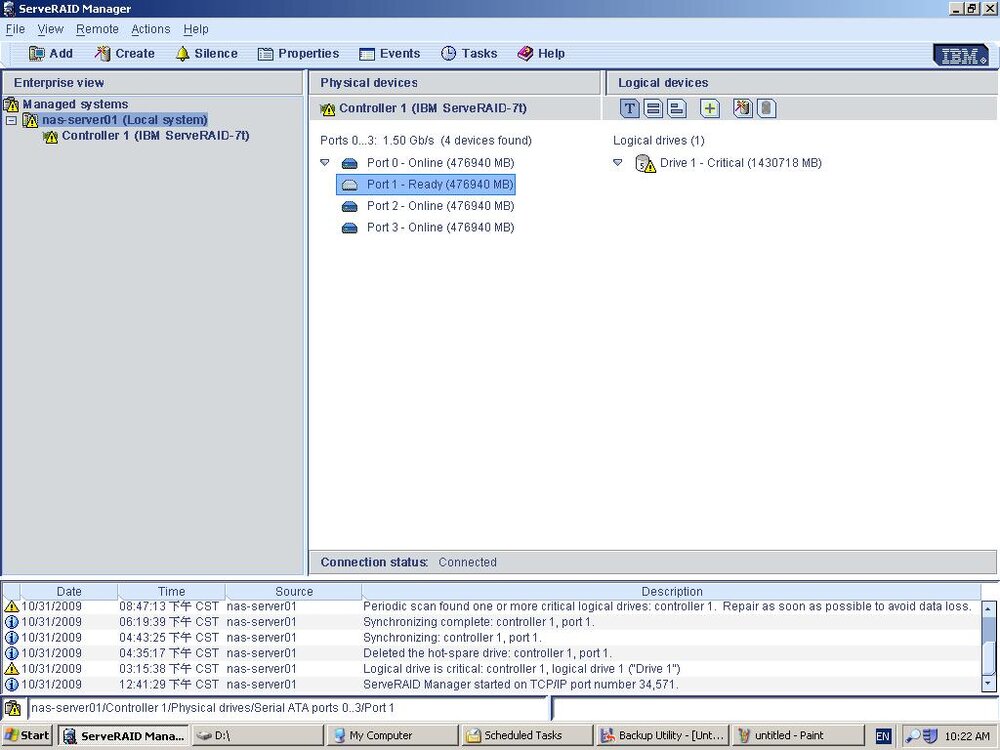

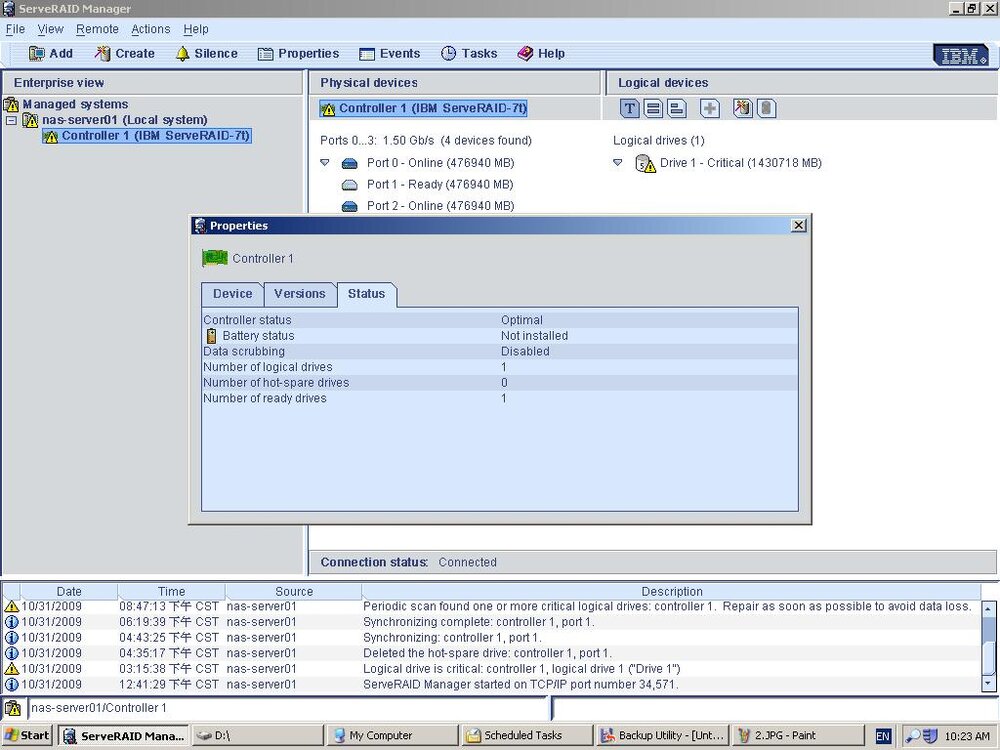

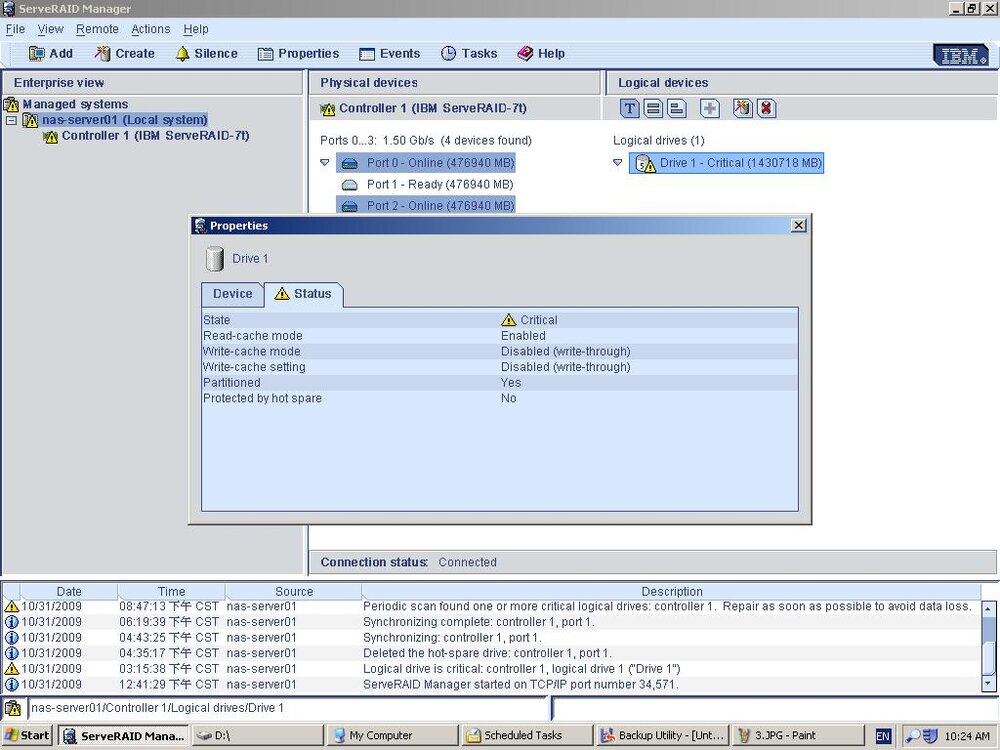

I have attach the picture of my server.

Can anyone tell me why?

Thank you very much!

[garrya100]

Is it part of the RAID array, or do you need to configure it as a hot spare? If it's not actually part of the array, syncronising won't acheive anything. If its supposed to be a hot spare, set to that will bring the array out of "critical"

[sps001]

It is part of the raid 5. I have try to make it become a hot spare, but it still in critical.

Thanks for your help!

[garrya100]

If that's the case your looking for a 'rebuild array' function. It's been a while since I've used Server Raid, but I think it could be under the 'Actions' menu.



You may also need to upgrade the controller BIOS if it doesn't correctly recognize the drive. I've seen some that were a little fussy till the BIOS was upgraded. Be carefull though, I've also had some spit the dummy and delete the array when the BIOS was upgraded!!

[sps001]

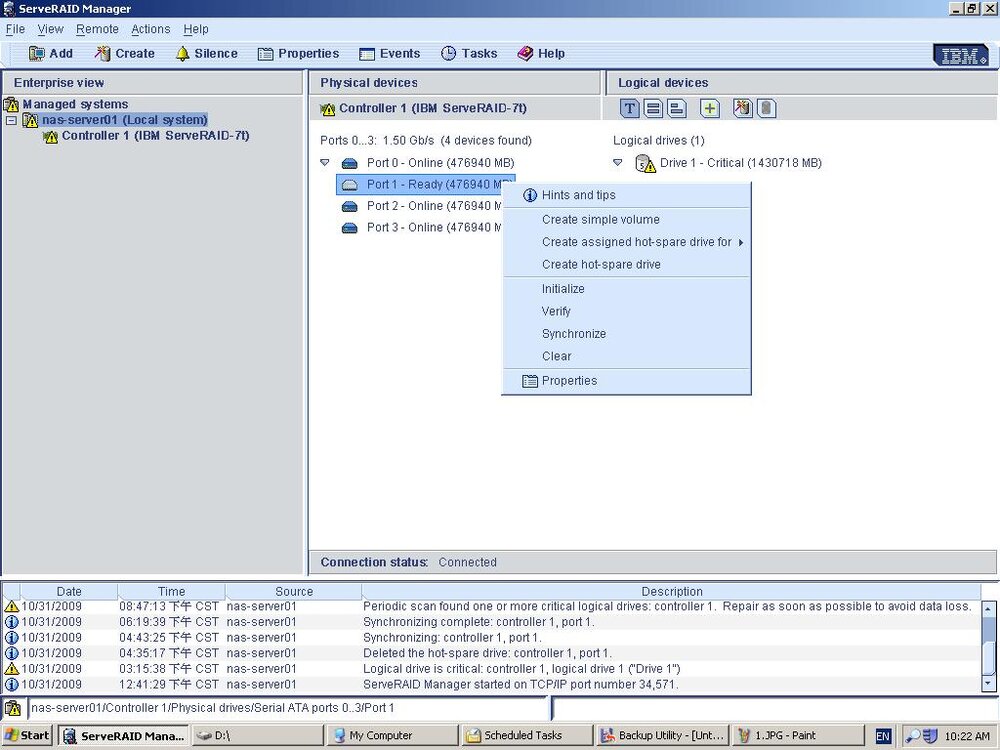

For the new hard disk, under the 'Actions' menu, there have several choices, 'Initialize', 'Verify', 'Synchronize', 'Clear'.

Can you tell me the meaning of these four choices?

Thanks a lot!

[garrya100]

You may have a Sever Raid install that is not set up for auto rebuild. Check the RAID BIOS to ensure a auto rebuild is available.



Another method may be to set it as a hotspare and then try to force a rebuild

[sps001]

thanks

I will try it later^^
