Aruba Instant Wi-Fi - Bonjour/AirPrint/AirPlay

[steven_layton_sl]

Hi guys

Is anyone using an Arubra Instant Wi-Fi network, and using Bonjour/AirPrint/AirPlay. Could we compare configurations? I've clearly got something set up wrong, as I still need to have Smoothwall Firewall rules in place to allow the trafficto jump across the VLANs, which should not be the case.

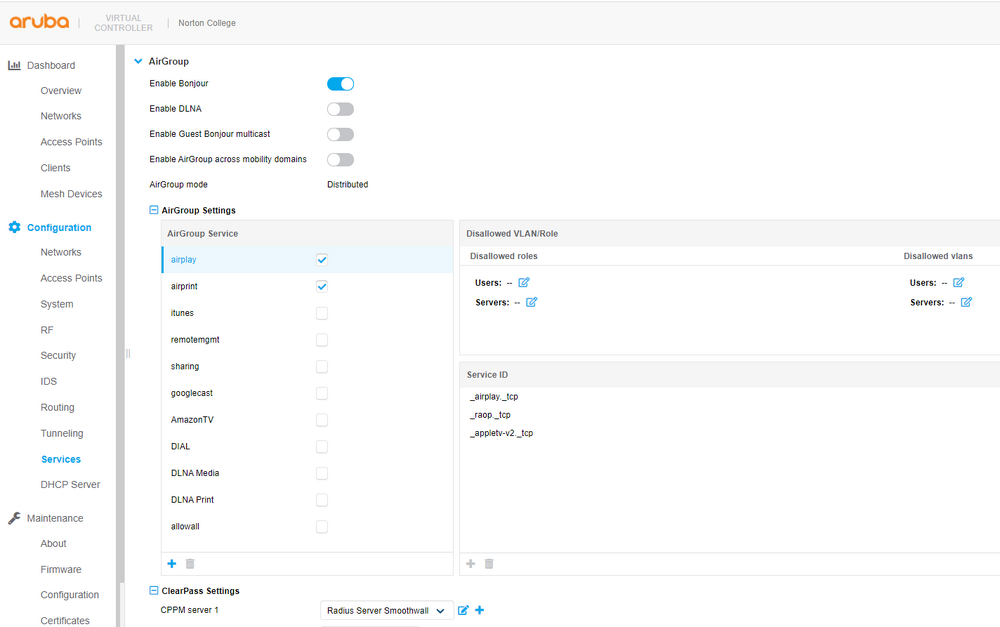

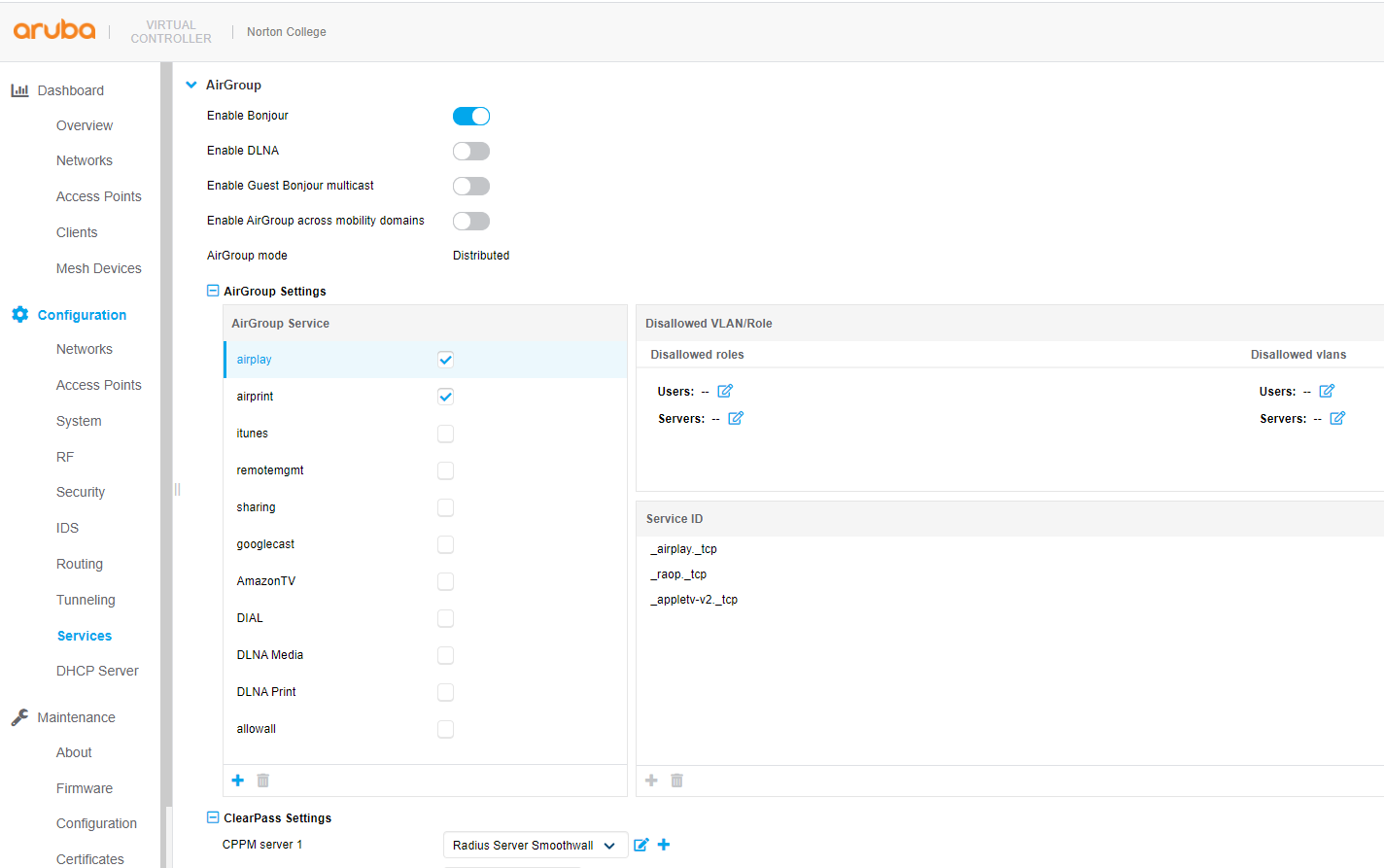

Below is a screen grab of my settings. What I really want is to allow all AirPlay and and AirPrint traffic to pass between VLAN2000 (my staff mobile devices network) and VLAN1 (with my Windows 10 PCs)

Steve



[bald_pig]

I'm not using that system, but I'd guess you'd need to configure that in the routing section?

[steven_layton_sl]

Yeah, I thought so, but its not what I was expecting to see.

I was expecting to see a table where I set something like Protocol "AirPlay" State *Allowed" From "VLAN2000" To "VLAN", or something like that.

As I can't see anything like that, I am wondering whether all selected protocols are allowed to move between all of the VLANs, unless I add them in the "Disallowed VLAN/role", but its not working without firewall rules set up in my Smoothwall UTM, which is not the way I expected it to work.

I "cheaped out" when we bought the Wi-Fi and didn't buy support, so Arube won't help andI can't find anything online about it.
