SCCM OSD UEFI Query

[FN-GM]

Hello,



I was wondering if there is a way to query a machine to see if it is UEFI during OSD please? I don't really want a 2 separate task sequence for BIOS and UEFI.



Thanks

[free780]

Its built in. In the default task sequences both BIOS and uefi are present. You do have to boot into x64 boot to deploy x64 OS or x86 boot for x86 OS.

[FN-GM]

I don't have that default TS. Besides the installation is from the says before UEFI was supported on SCCM.



If someone has the details for this TS please? I can try recreate it

Edited November 15, 2016 by FN-GM

[Blue_Cookeh]

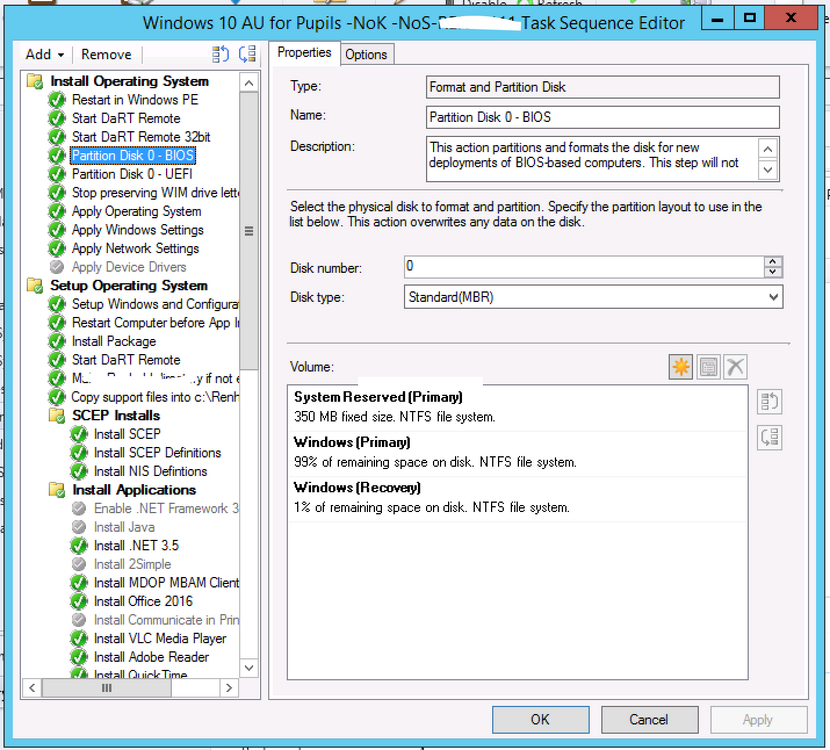

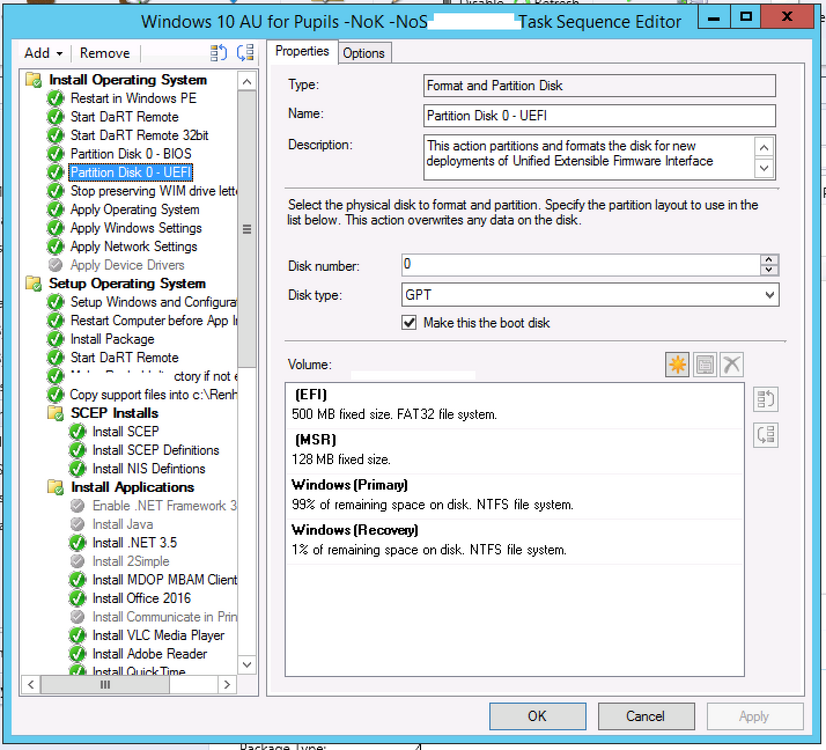

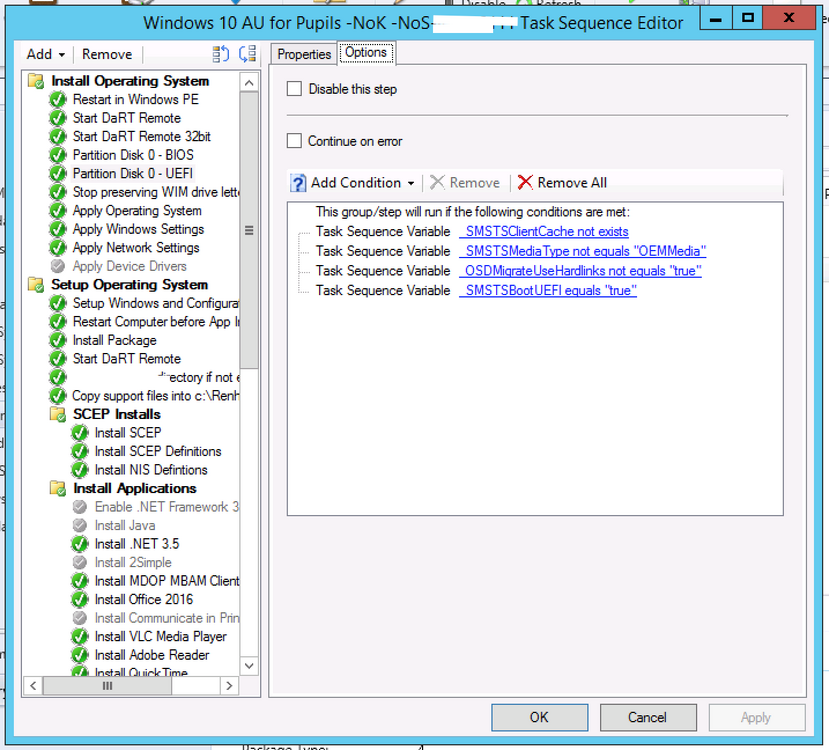

You need to go through the Task Sequence wizard for it... but here it is, I believe it only affects the partitioning stage. It looks like you want the SMSTSBootUEFI variable:









Edited November 15, 2016 by Blue_Cookeh

[Arthur]

the installation is from the says before UEFI was supported on SCCM.

Have you already got the UEFI PXE boot working too? e.g.



https://2pintsoftware.com/whitepaper-using-dhcp-uefi-bios-pxe-booting/
