Realtek WOL NIC Driver Setting

[ITGURU]

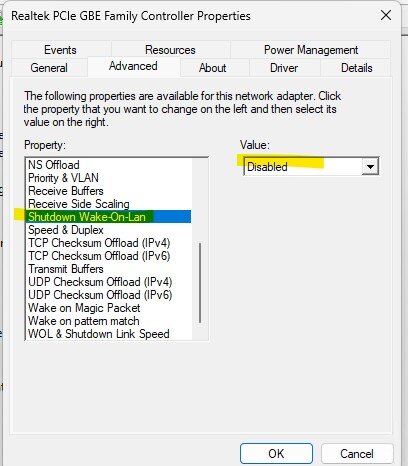

I used to make fat images with correct driver installed and setting the realtek 'shutdown wake on lan' to ENABLE for the image.

I'm now using MDT with the same driver.

However, by default the driver sets the above setting to DISABLED so cannot wake up the machine remotely

How can i change this via Group policy or as part of the install when running the task sequence injecting the drivers?

thanks

[timbo343]

Have you got an old driver in your MDT driver store? We only have the latest RealTek NIC drivers in our MDT Driver store as we had various RealTek NIC driver versions in there and had  tidy up. You'll find that RealTek only have the one driver and usually the newest just works.



Our machines with RealTek drivers just seem to work and the WOL "wake on magic packet" is always in the driver.

[ITGURU]

wake on magic packet is in the driver, its specifically the 'shutdown wake-on-lan' setting which gets installed as 'disabled' with the driver, and only when 'enabled' the machines wake up remotely!

[timbo343]

35 minutes ago, ITGURU said:

wake on magic packet is in the driver, its specifically the 'shutdown wake-on-lan' setting which gets installed as 'disabled' with the driver, and only when 'enabled' the machines wake up remotely!

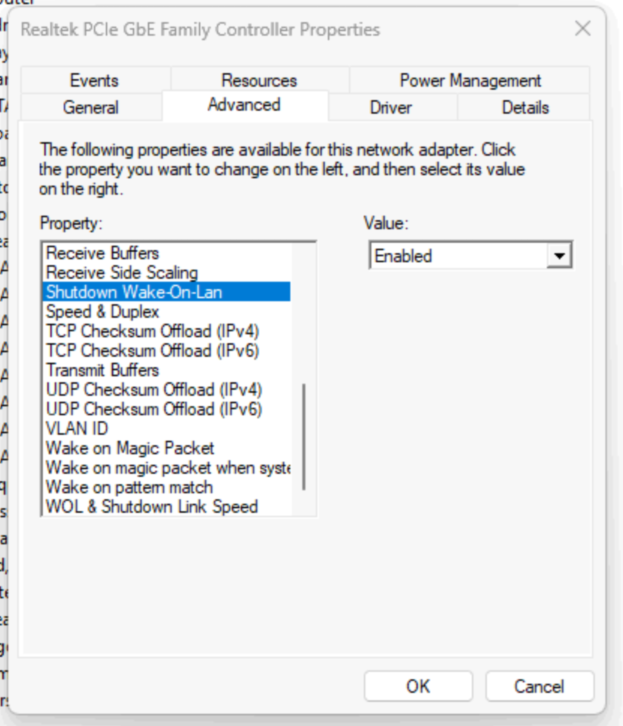

Oh! I see. I've just checked ours and ours is showing as enabled. We build the images on VMs and sysprep from there.

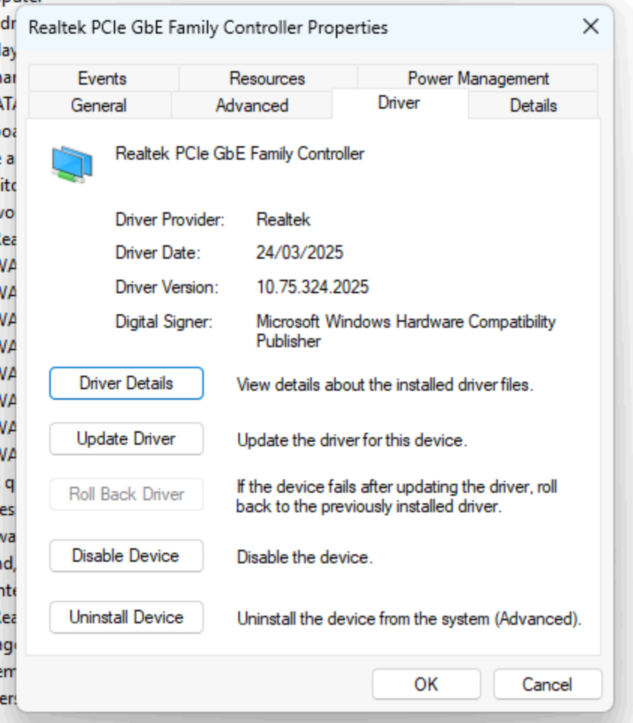

Here's ours, and this machine as just had the new Win 11 Enterprise 24H2 image today bang up to date with Windows update too.



[ITGURU]

Mines an older driver and update driver doesn't find anything newer. Will find a direct download and try that. Thanks.

[timbo343]

51 minutes ago, ITGURU said:

Mines an older driver and update driver doesn't find anything newer. Will find a direct download and try that. Thanks.



I had to download the updated NIC driver from Realtek. Just a note, it takes ages to download!!!

[mikes]

I tried to change IPV4 checksum offload in the same advanced NIC properties (for an Intel onboard NIC not Realtek though) and I couldn't find any GPO or any other automated way to do it! I had to go round to each machine and do it manually 😞

[mavhc]

5 hours ago, mikes said:

I tried to change IPV4 checksum offload in the same advanced NIC properties (for an Intel onboard NIC not Realtek though) and I couldn't find any GPO or any other automated way to do it! I had to go round to each machine and do it manually 😞

Registry Diff? Process Monitor, or https://sourceforge.net/projects/regshot/
