Sccm pxe boot runs but doesn’t actually image

[Jax]

Hi, I’ve just set to a Sccm server and done a simple win 10 image, set up the DP & TS

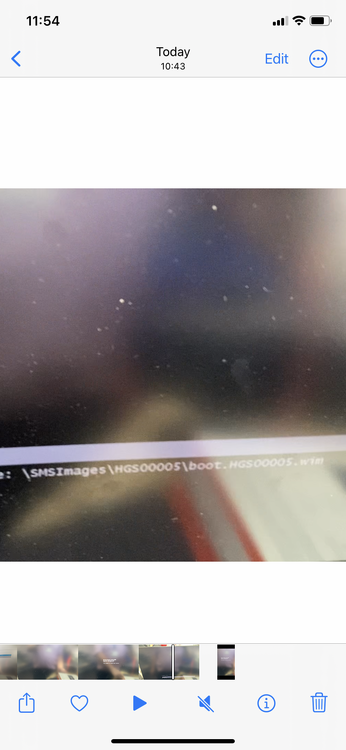

Now when I run on a new pc that has an old version of win 10 on the pxe boot starts I get a message that it’s running the wim files from smsimages folder, then the configuration manger screen comes up and sits there but there isn’t much happening here after a few minutes it reboots and the old image is still on the pc.

It’s the 1st time trying Sccm, what am I missing

[Steve21]

If that’s just the boot page does it actually show a task sequence for you to pick and deploy?



If not I assume you missed the stage of deploying an actual TS under operating systems tab



Steve

[bald_pig]

Sounds like your boot.wim is missing network drivers

[Jax]

I’ve just tried it on a Hp laptop and it has worked but on this new pc I’ve got HP mini desktop g9 400 it looks like it’s doing it but doesn’t actually image

[Jcx500]

I’ve just tried it on a Hp laptop and it has worked but on this new pc I’ve got HP mini desktop g9 400 it looks like it’s doing it but doesn’t actually image



Sounds like your missing drivers , Add the appropriate ones to that TS and it should work
