    Figure of 8 to Kettle Lead Converter

    Hi there,

    Does anyone know if its possible to convert a Figure of 8 plug (IEC C7) to a Kettle Lead type plug (IEC C13).

    I ask as one of our projectors has failed, and it has a figure of 8 lead. We have a spare projector, but it requires a kettle lead. So instead of pulling out all the cables I wondered if there was a way to do this.

    Previously we have used similar converters from Maplin to convert a Figure of 8 to a clover leaf.

    However I can;t find any on the internet, so I am assuming its not possible (or even safe!).

  2. #2

    SYNACK's Avatar
    Join Date
    Oct 2007
    Posts
    11,039
    Thank Post
    852
    Thanked 2,665 Times in 2,262 Posts
    Blog Entries
    9
    Rep Power
    767
    Edit: No as the figure 8 does not have ground, I read it backwards hence the info below.

    You can do it the other way though:

    Leads Direct - Mains leads and cables

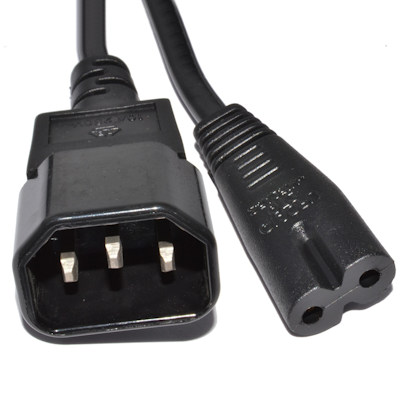

    2m IEC C14 plug to IEC C7 ( Figure of Eight, Calculator/Radio style) 2C14-C7 3.49 inc VAT (3.03 ex VAT)
    Last edited by SYNACK; 13th March 2009 at 11:15 AM.

  3. Thanks to SYNACK from:

    danielson81 (13th March 2009)

  4. #3

    Join Date
    May 2007
    Location
    Brighton
    Posts
    92
    Thank Post
    56
    Thanked 9 Times in 6 Posts
    Rep Power
    16
    Thanks, looks like its going to have to be a 5m Power lead and pulling up all the cable trunking! Or a new projector?

  5. #4
    nc-
    nc- is offline

    Join Date
    Mar 2009
    Posts
    40
    Thank Post
    14
    Thanked 5 Times in 5 Posts
    Rep Power
    11
    Quote Originally Posted by danielson81 View Post
    Thanks, looks like its going to have to be a 5m Power lead and pulling up all the cable trunking! Or a new projector?
    Is this any good or is it the wrong way round.

    Travel Kettle Plug Adaptor | Adapt your Hotel Room Kettle 8 Style Connector

  6. Thanks to nc- from:

    danielson81 (13th March 2009)

  7. #5

    Join Date
    May 2007
    Location
    Brighton
    Posts
    92
    Thank Post
    56
    Thanked 9 Times in 6 Posts
    Rep Power
    16
    Thanks, its the wrong way round.

  8. #6

    john's Avatar
    Join Date
    Sep 2005
    Location
    London
    Posts
    10,505
    Thank Post
    1,492
    Thanked 1,050 Times in 919 Posts
    Rep Power
    302
    How about just cutting the end off it and putting on a re-wireable IEC Connector.

  9. Thanks to john from:

    danielson81 (13th March 2009)

  10. #7
    andyrite's Avatar
    Join Date
    Apr 2007
    Posts
    412
    Thank Post
    7
    Thanked 90 Times in 71 Posts
    Rep Power
    41
    If the procjector has a kettle lead then it is most likey a class I device and needs a earth. It would fail a PAT test if the earth isn't connected and could potentially be dangerous.

  11. Thanks to andyrite from:

    danielson81 (13th March 2009)

  12. #8

    Join Date
    May 2007
    Location
    Brighton
    Posts
    92
    Thank Post
    56
    Thanked 9 Times in 6 Posts
    Rep Power
    16
    Thanks, I think I will just tell them to get another projector.
